Large-Scale Sculpture Fabrication: Process, Engineering, and Production
Large-scale sculpture fabrication requires a combination of artistic creativity, engineering, technology, and industrial production capabilities to transform an artistic concept into a work of substantial dimensions.
As a sculpture increases in scale, almost every stage of the project becomes more complex. Weight, structural resistance, material selection, sectional fabrication, transportation, and installation must all be considered from the earliest stages.
A large-scale sculpture is not simply an enlarged version of a smaller artwork. Its production requires specific technical solutions that preserve the artist’s original vision while ensuring that the finished piece is technically feasible, structurally safe, and suitable for its final location.
Since 1993, Alfa Arte has collaborated with artists, architects, and institutions to materialize sculptural projects at different scales by combining traditional artistic techniques, digital technologies, engineering, and specialized fabrication.
What Is Large-Scale Sculpture Fabrication?
Large-scale sculpture fabrication encompasses the processes required to produce artworks whose dimensions demand technical and production solutions beyond those typically used for conventional sculptures.
These artworks may be created for:
- public spaces;
- parks and gardens;
- architectural projects;
- corporate buildings;
- hotels;
- airports;
- museums;
- universities;
- real estate developments;
- commercial spaces;
- private collections.
Large dimensions directly influence structural design, material selection, fabrication methods, transportation strategy, and installation.
For this reason, production should be approached as an integrated project in which artistic and technical decisions are closely connected.
What Is the Difference Between Large-Scale and Monumental Sculpture?
Although the two concepts can overlap, they do not necessarily mean exactly the same thing.
A large-scale sculpture is primarily defined by its dimensions and the technical challenges associated with its size.
A monumental sculpture, on the other hand, often involves a particular relationship with its surroundings, architecture, landscape, or the representative nature of the artwork.
A piece can therefore be considered large-scale because of its dimensions without necessarily having a monumental function.
When a project reaches monumental proportions and requires an integrated approach to engineering, production, and installation, monumental sculpture fabrication involves additional considerations related to the environment and long-term permanence of the artwork.
How Is a Large-Scale Sculpture Fabricated?
Although every artwork requires a specific approach, fabrication generally involves several stages:
- Artistic concept analysis.
- Feasibility assessment.
- Model digitization.
- Enlargement.
- Engineering.
- Material selection.
- Internal structure development.
- Mold making when required.
- Sectional fabrication.
- Casting or direct metal fabrication.
- Assembly.
- Finishing.
- Quality control.
- Transportation.
- Installation.
These stages form part of the broader sculpture fabrication process but acquire specific characteristics when the dimensions of an artwork increase considerably.
1. Analyzing the Artistic Concept
Every project begins with the original artwork or artistic concept.
The artist may provide:
- sketches;
- drawings;
- photographs;
- clay models;
- maquettes;
- existing sculptures;
- digital files;
- 3D models.
The first objective is to understand which elements of the artwork must be preserved during enlargement.
Proportions, textures, geometries, and surface characteristics can behave differently when a sculpture grows from a small model to a work several meters high.
Before production begins, it is therefore essential to determine how the artistic language can be accurately translated into a much larger scale.
Alfa Arte’s artistic consultancy service can help assess the artistic, technical, and economic feasibility of a project before fabrication begins.
2. Digitizing the Artwork
Digital technologies have significantly transformed the way large-scale sculptures can be produced.
When a physical model exists, it can be digitized using techniques such as:
- 3D scanning;
- photogrammetry;
- three-dimensional capture;
- digital reconstruction.
The result is a three-dimensional model that allows the geometry to be analyzed and modified before production.
This stage can be particularly useful for identifying:
- irregularities;
- geometric issues;
- difficult-to-fabricate areas;
- structural requirements;
- potential sectional divisions.
Digital modeling and 3D scanning allow the geometry of a sculpture to be developed while maintaining a high degree of fidelity to the original model.
3. Enlarging a Sculpture
Enlargement is one of the most important stages in the fabrication of large-scale artworks.
The objective is not simply to multiply the dimensions mathematically.
When a sculpture increases significantly in size, certain adaptations may be required to maintain its visual impact and proportions.
Details that were barely noticeable on a small maquette can become prominent when the artwork reaches several meters in height.
Enlargement can be carried out using:
- digital modeling;
- CNC machining;
- milling;
- three-dimensional reproduction systems;
- traditional enlargement techniques;
- combinations of digital and manual methods.
The artist’s involvement during this stage can be essential to ensure that the enlarged artwork preserves the character of the original model.
4. Engineering for Large-Scale Sculptures
Increasing the scale of an artwork radically changes its structural behavior.
Weight increases, the surface exposed to wind becomes larger, and new requirements emerge regarding stability and support systems.
Depending on the project, technical analysis may include:
- weight;
- center of gravity;
- structural loads;
- wind resistance;
- material thickness;
- internal structures;
- connection systems;
- lifting points;
- anchors;
- foundations.
The specific conditions of the final installation site must also be considered.
Engineering must therefore be incorporated into the project before fabrication begins, rather than treated as a separate consideration at the end of the process.
5. Designing Internal Structures
Many large-scale sculptures require an internal structure capable of supporting the exterior surface and correctly transferring loads to the supporting points.
These structures may be fabricated using:
- metal profiles;
- welded structures;
- stainless steel;
- custom structural elements;
- internal reinforcement systems.
Their design must respect the exterior geometry of the sculpture and remain concealed when required by the artistic concept.
At the same time, the structure must allow the artwork to be fabricated, transported, and assembled efficiently.
Alfa Arte’s metalworking and technical structures capabilities allow structural systems to be developed according to the specific requirements of each project.
6. Selecting Materials
Material selection becomes particularly important when producing an artwork of substantial dimensions.
Factors that should be evaluated include:
- weight;
- strength;
- durability;
- outdoor performance;
- structural possibilities;
- finishing options;
- maintenance;
- budget;
- transportation.
Different metals offer different possibilities depending on the artistic language and technical requirements of the project.
Large-Scale Bronze Sculpture Fabrication
Bronze allows complex surfaces to be reproduced and offers extensive finishing possibilities.
Its main characteristics include:
- excellent durability;
- ability to reproduce fine details;
- extensive patination possibilities;
- good outdoor performance;
- long artistic tradition.
Large bronze artworks are normally divided into numerous sections that are cast individually and subsequently assembled through welding.
Alfa Arte’s artistic foundry capabilities allow sculptural metal components to be produced using specialized casting processes.
Our dedicated article on bronze sculpture fabrication will explore the specific characteristics of this production process in greater detail.

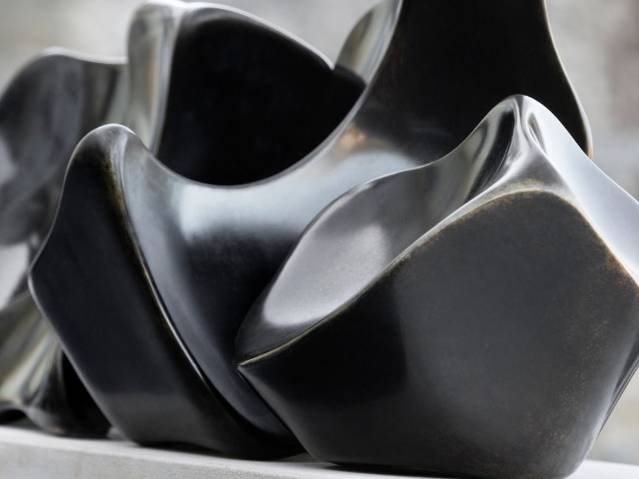

Large-Scale Stainless Steel Sculpture Fabrication
Stainless steel is widely used in contemporary large-scale sculpture.
Its advantages include:
- mechanical strength;
- corrosion resistance;
- durability;
- structural capabilities;
- multiple finishing possibilities.
Surfaces can be polished, satin-finished, brushed, textured, or reflective.
Stainless steel sculpture fabrication requires particularly precise control over cutting, forming, welding, and finishing processes.
Large-Scale Aluminum Sculpture Fabrication
Aluminum offers a particularly important advantage for large projects: relatively low weight compared with many other metals.
This can simplify:
- handling;
- transportation;
- assembly;
- structural design;
- certain foundation requirements.
It also supports a variety of surface treatments and finishing systems.
The process will be explored in greater depth in our dedicated article on aluminum sculpture fabrication.
Large-Scale Steel Sculpture Fabrication
Steel provides excellent structural capabilities and allows artworks of considerable dimensions to be produced.
It can be used both as the visible exterior material of the sculpture and for the development of internal structural systems.
Steel sculpture fabrication may involve cutting, bending, forming, welding, and different surface treatments depending on the requirements of the artwork.
7. Mold Making
When the fabrication process involves casting, the enlarged model must be transformed into one or more molds.
The dimensions of large-scale works make it practically impossible to work with a single mold.
The artwork must therefore be strategically divided into sections.
Materials may include:
- silicone;
- plaster;
- resins;
- acrylic systems;
- composite materials.
The division must accurately reproduce the forms and textures of the original model while facilitating the subsequent production stages.
8. Sectional Fabrication
Dividing the artwork into sections is one of the most important technical decisions in the entire project.
A large sculpture may need to be divided because of:
- fabrication limitations;
- equipment dimensions;
- weight;
- transportation;
- site access;
- crane capacity;
- assembly requirements.
Each section must be designed according to how it will subsequently connect with the others.
Careful planning makes it possible to conceal joints and considerably simplify final assembly.
9. Casting or Direct Metal Fabrication
The artistic characteristics of the artwork determine the most appropriate production method.
Casting
Casting is particularly useful when it is necessary to reproduce:
- organic forms;
- textures;
- details;
- complex geometries.
Lost wax casting is especially relevant for certain bronze projects.
Direct Metal Fabrication
Other sculptures can be constructed directly through metal fabrication.
Processes may include:
- cutting;
- bending;
- forming;
- machining;
- welding;
- assembly.
Some projects may combine both methods to achieve the required artistic and technical result.
10. Assembly and Welding
Once the different sections have been produced, they must be integrated into the complete artwork.
This stage may involve:
- positioning;
- dimensional adjustments;
- welding;
- mechanical connections;
- grinding;
- surface reconstruction;
- texture matching.
The objective is to create a structurally solid artwork while visually eliminating evidence of the divisions required during fabrication.
Precision during this stage directly influences the final quality of the sculpture.
11. Patination, Painting, and Finishing
Surface finishing can completely transform the perception of a sculpture.
Depending on the material and artistic concept, treatments can include:
- patinas;
- painting;
- polishing;
- satin finishes;
- mirror finishes;
- chemical treatments;
- textures;
- protective coatings.
Large surfaces present an additional challenge: maintaining consistency throughout the entire artwork.
Alfa Arte’s patina, painting and finishes service provides different surface treatments according to the material and desired artistic result.
12. Quality Control and Pre-Assembly
Before a large-scale sculpture is transported, different aspects of the artwork must be verified.
These may include:
- dimensions;
- geometry;
- stability;
- welds;
- connections;
- surfaces;
- finishes;
- anchors.
When the characteristics of the project allow it, a preliminary assembly can also be carried out.
Pre-assembly makes it possible to check how the different sections fit together before they are transported to the final site.
This can considerably reduce the risk of encountering problems during installation.
13. Transportation of Large-Scale Sculptures
Transportation influences many of the decisions made during fabrication itself.
A sculpture may exceed the dimensions or weight permitted for conventional transport.
In these cases, requirements may include:
- custom packaging;
- transportation structures;
- specialized vehicles;
- permits;
- cranes;
- maritime shipping;
- international transportation;
- customs coordination.
Correctly dividing the artwork into sections can optimize this stage without compromising the artistic result.
Alfa Arte’s logistics, installation and transport service allows these operations to be coordinated from the fabrication facility to the artwork’s final destination.
14. Installing a Large-Scale Sculpture
Installation is the stage at which all the decisions made throughout the project converge.
Depending on the artwork, installation may require:
- foundations;
- anchoring systems;
- cranes;
- aerial work platforms;
- temporary structures;
- on-site welding;
- mechanical connections;
- specialized installation teams.
Coordination may also be necessary with:
- architects;
- engineers;
- construction companies;
- landscape architects;
- public authorities;
- site managers.
For artworks integrated into urban or architectural environments, Alfa Arte’s constructive and urban sculpture capabilities can address the specific technical requirements of these projects.
Large-Scale Sculpture Fabrication for Artists
Working at a large scale can open new creative possibilities, but it also introduces technical challenges that do not exist in smaller artworks.
The artist needs to maintain control over:
- proportions;
- surfaces;
- textures;
- materials;
- finishes;
- perception of the artwork.
At the same time, the fabrication team must develop the technical solutions required to transform that artistic vision into a physically viable structure.
Collaboration between both parties becomes particularly important during enlargement, engineering, fabrication, and finishing.
Within this fabrication cluster, we will explore this relationship specifically in our guide to sculpture fabrication for artists.
Large-Scale Sculpture Fabrication for Architects
When a sculpture forms part of an architectural project, its fabrication must be coordinated with numerous external elements.
Considerations may include:
- building structures;
- foundations;
- site access;
- construction schedules;
- lifting equipment;
- landscaping;
- safety requirements;
- installation dates.
Involving the sculpture fabricator during the early stages of the project can help identify potential constraints before they affect production or installation.
This process will be explored in greater depth in our dedicated content on sculpture fabrication for architects.
Why Work With a Specialized Large-Scale Sculpture Fabricator?
Scale transforms sculpture fabrication into a multidisciplinary project.
A specialized fabricator must be capable of coordinating:
- artistic development;
- modeling;
- digitization;
- engineering;
- mold making;
- casting;
- metal fabrication;
- structural systems;
- finishing;
- logistics;
- installation.
Bringing these disciplines together facilitates communication between teams and reduces the risk of incompatibilities between the different stages of the project.
Large-Scale Sculpture Fabrication at Alfa Arte
Since 1993, Alfa Arte has worked alongside artists, architects, designers, and institutions to materialize sculptural projects of different dimensions and levels of complexity.
The combination of traditional craftsmanship with digital technologies, engineering, artistic foundry, metalworking, and logistical capabilities allows projects requiring specialized large-scale fabrication solutions to be developed.
Each project is studied individually to determine the combination of materials, techniques, and production processes best suited to translating the artistic concept into the finished artwork.
Frequently Asked Questions About Large-Scale Sculpture Fabrication
What size is considered a large-scale sculpture?
There is no universal measurement. An artwork is generally considered large-scale when its dimensions or weight require specialized engineering, fabrication, handling, transportation, or installation processes.
Can a small maquette be enlarged into a sculpture several meters high?
Yes. 3D scanning and digital modeling can be used to digitize a maquette and enlarge it while preserving its proportions. Digital and manual adjustments can then be made before fabrication begins.
What materials are used for large-scale sculptures?
Bronze, stainless steel, aluminum, and different types of steel are common options. Material selection depends on the artistic intention, dimensions, structural requirements, location, environmental conditions, and desired finish.
Are large sculptures fabricated in a single piece?
Usually not. Large artworks are commonly divided into different sections to facilitate fabrication, handling, and transportation. These sections are subsequently assembled through welding or specialized connection systems.
Can Alfa Arte manage transportation and installation?
Yes. Depending on the project requirements, Alfa Arte can coordinate fabrication with custom packaging, transportation, logistics, and final installation.
Conclusion
Large-scale sculpture fabrication involves much more than simply increasing the dimensions of an original model. Scale changes the structural behavior of an artwork, influences material selection, determines how it must be divided for production, and requires careful planning for transportation and installation.
Combining artistic expertise, engineering, specialized fabrication, and logistics makes it possible to transform a maquette or digital concept into a large-scale physical artwork while preserving the essence of the original artistic vision.
At Alfa Arte, we collaborate with artists, architects, and institutions to develop the technical solutions required for large-scale sculptural projects, from the initial feasibility stages through fabrication and final installation.
